06 · Automatic axis range

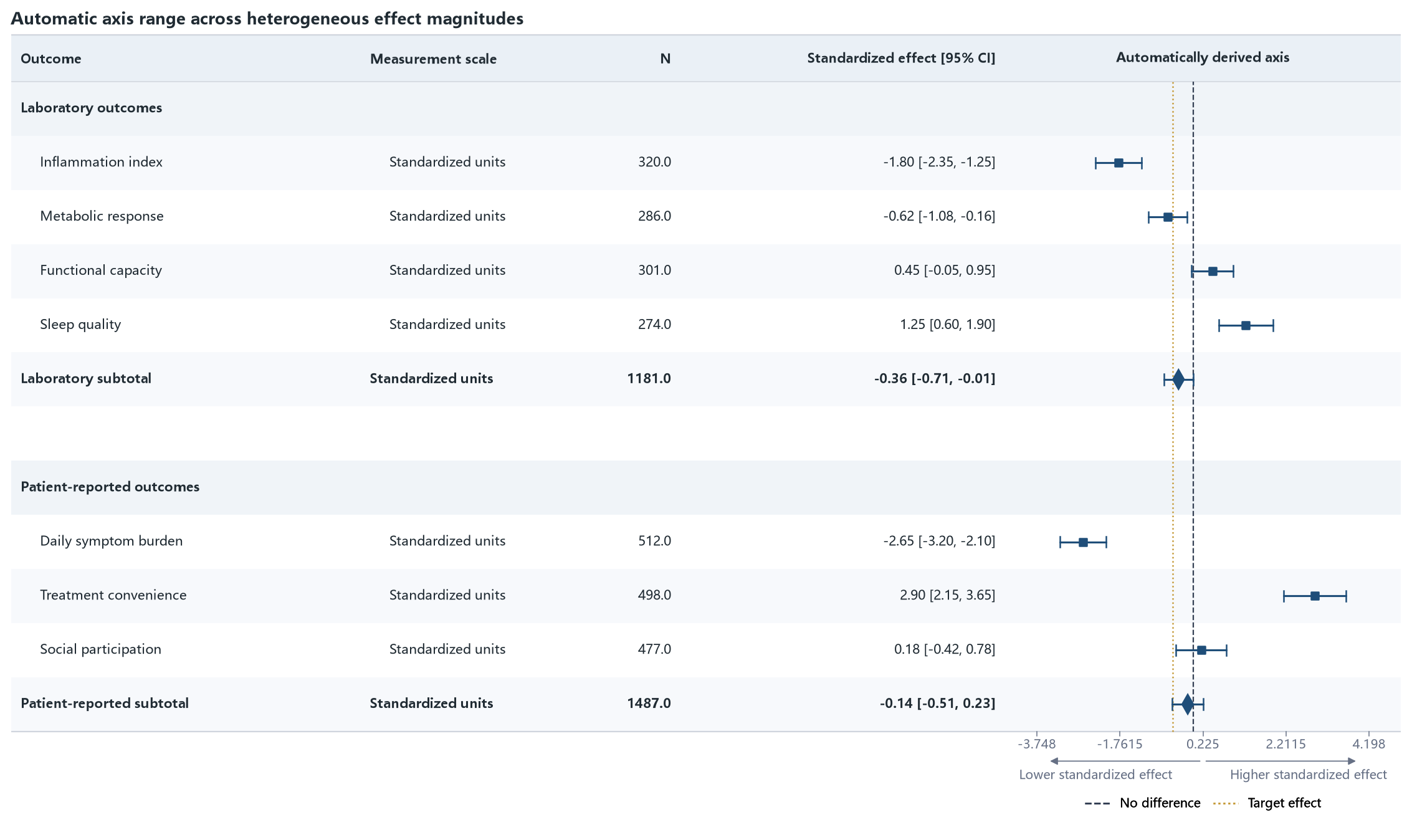

Large positive and negative effects exercise automatic limits, automatic ticks, a reference line, and an ideal-value line.

XLSX · CSV · PNG

Run the example

from forestploter import read_forest_data
from forestploter.gallery_cases import plot_auto_scale_mixed_effects

df = read_forest_data("06_auto_scale_mixed_effects.xlsx", sheet_name="Forest")
result = plot_auto_scale_mixed_effects(df)
result.save("06_auto_scale_mixed_effects.png", dpi=300)

Plot function used by the gallery and tests

def plot_auto_scale_mixed_effects(df: ForestInput) -> ForestPlotResult:
    """Plot case 06: automatic limits for heterogeneous effects."""

    columns = (
        ForestColumn("outcome", "Outcome", "text", 2.5),
        ForestColumn("scale", "Measurement scale", "text", 1.3),
        ForestColumn("n", "N", "numeric", 0.6, "right"),
        ForestColumn("effect_display", "Standardized effect [95% CI]", "numeric", 2.0, "right"),
        ForestColumn("ci", "Automatically derived axis", "ci", 3.4, "center"),
    )
    return forest(
        df,
        columns=columns,
        ref_line=0.0,
        ideal_line=-0.5,
        xlim=None,
        ticks_at=None,
        arrow_lab=("Lower standardized effect", "Higher standardized effect"),
        title="Automatic axis range across heterogeneous effect magnitudes",
        figure_width=12.5,
        reference_legend=ForestReferenceLegendSpec(
            reference_label="No difference",
            ideal_label="Target effect",
            location="bottom",
            ncol=2,
        ),
    )
