05 · Long text and multilingual layout

Long headers, long subgroup labels, Chinese/English content, automatic header wrapping, and automatic Figure-width growth are exercised together.

XLSX · CSV · PNG

Run the example

from forestploter import read_forest_data
from forestploter.gallery_cases import plot_long_layout

df = read_forest_data("05_long_layout.xlsx", sheet_name="Forest")
result = plot_long_layout(df)

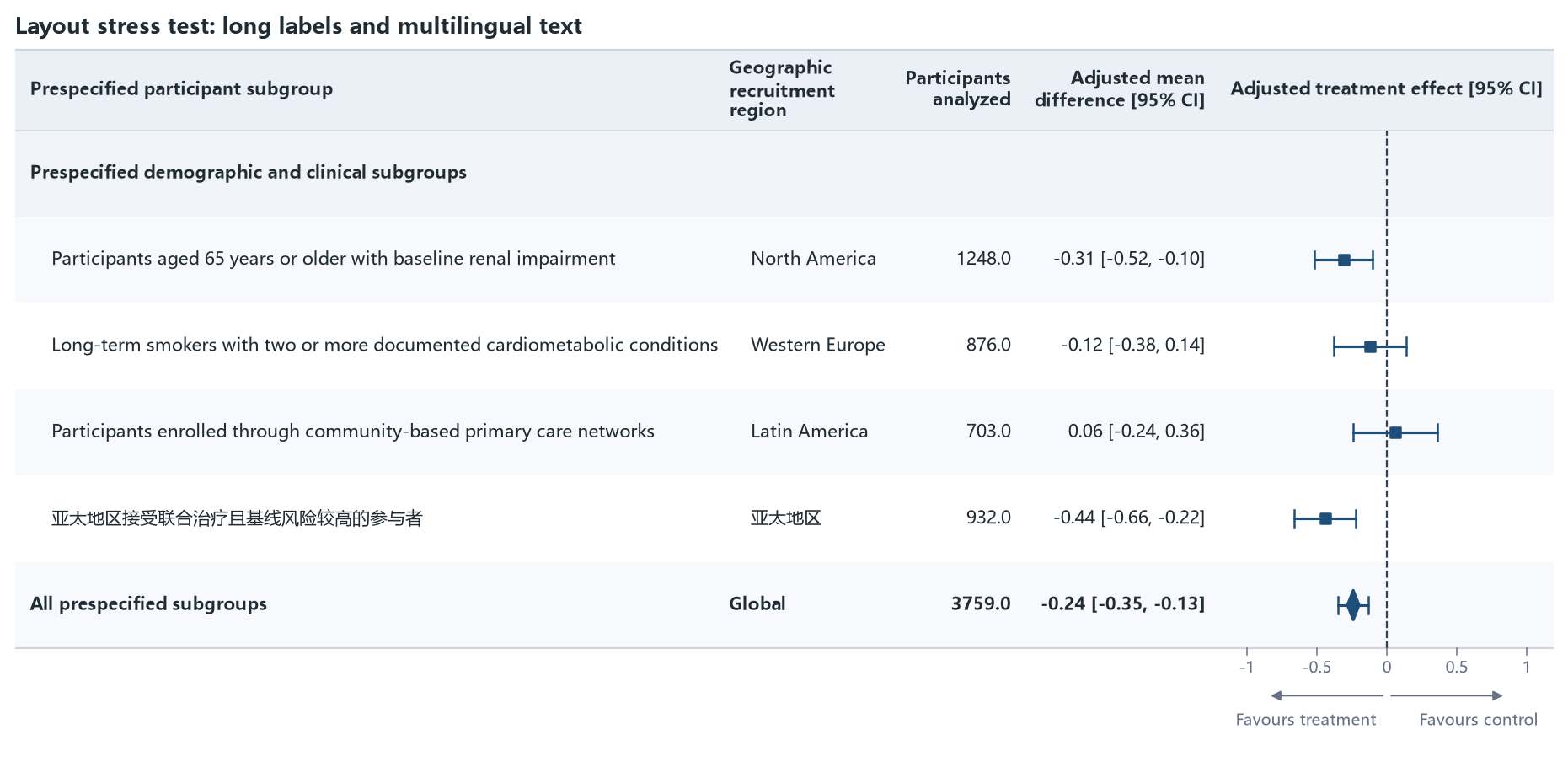

result.save("05_long_layout.png", dpi=300)

Plot function used by the gallery and tests

def plot_long_layout(df: ForestInput) -> ForestPlotResult:
    """Plot case 05: long labels, multilingual text, and auto layout."""

    columns = (
        ForestColumn("subgroup", "Prespecified participant subgroup", "text", 2.8),
        ForestColumn("region", "Geographic recruitment region", "text", 1.1),
        ForestColumn("participants", "Participants analyzed", "numeric", 0.8, "right"),
        ForestColumn(
            "effect_display", "Adjusted mean difference [95% CI]", "numeric", 1.8, "right"
        ),
        ForestColumn("ci", "Adjusted treatment effect [95% CI]", "ci", 2.8, "center"),
    )
    return forest(
        df,
        columns=columns,
        ref_line=0.0,
        xlim=(-1.0, 1.0),
        ticks_at=(-1.0, -0.5, 0.0, 0.5, 1.0),
        arrow_lab=("Favours treatment", "Favours control"),
        title="Layout stress test: long labels and multilingual text",
        figure_width=7.5,
        row_height=0.42,
        theme=ForestTheme(base_font_size=8.25),
        table_layout=ForestTableLayoutSpec(
            auto_width=True,
            auto_wrap_headers=True,
            column_padding_pt=7.0,
            edge_padding_pt=6.0,
            max_header_lines=3,
            max_figure_width=16.0,
        ),
    )
